Product Details:

Place of Origin: China
Brand Name: Unicomp
Certification: CE, FCC
Model Number: AX9100
Detailed Product Description
Function: PCBA,BGA Inspection Equipment: Quality Check
  • Application
  • Aluminium Die-casting, Moulding Plastic.
  • Semiconductor, Packaging components, Battery Industry,
  • Electronic components, Automotive parts, Photo-voltaic,
  • Ceramics, other special industries.
  • SMT, BGA, CSP, Flip Chip, LED Detection

Aluminium Die Casting SMT / EMS X Ray Machine CNC Programmable Detection For BGA VoidsAluminium Die Casting SMT / EMS X Ray Machine CNC Programmable Detection For BGA VoidsAluminium Die Casting SMT / EMS X Ray Machine CNC Programmable Detection For BGA Voids




  • Features
  • X-ray tube & detector automatic lifting and descending, with convenient target point positioning system
  • Multi-function DXI image processing system, CNC programmable detection
  • 130kV (Option 110KV) 3µm closed X-ray tube, high speed & Millions pixels high resolution FPD
  • Tilt detection with 55° and rotation 360°operation together with 6 axis movement
  • Max. loading area φ570mm, max. inspection area 450mm*450mm, with 1600X Magnification

Aluminium Die Casting SMT / EMS X Ray Machine CNC Programmable Detection For BGA Voids

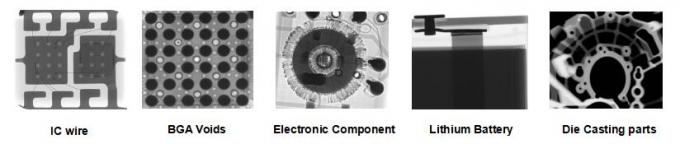

  •  X-ray Images

      Aluminium Die Casting SMT / EMS X Ray Machine CNC Programmable Detection For BGA Voids


  • Technical Specifications



Item Description Specifications
X-Ray Tube Max. Voltages, Type 130kV (Option 110KV), Closed
Power Consumption 40W(25W)
Focal Spot Size 3 μm
Magnification 1600X
Detector Detector Type FPD
Resolution 101 LP/cm
Effective Area 116.4mm ×145.7mm
System Computer Operating System Industrial PC, Win 7, i7 Processor
Monitor 22” LCD
Software User Interface Unicomp Multi-function DXI image processing system
Working Platform Max. Loading Area φ570mm
Max. Inspection Area 450mm×450mm
Max. Loading Weight 10kg
Movement Control Joysticks, Mouse and Keypads
Motion Range (Up and Down) 200mm
Table Tilting Angle 55° Tilting and 360° Rotation
Navigation Camera HD Camera, Laser point
Axis Manipulator 6-axis with X1/ X2 / Y / Z / T(55°) / R(360°)
Equipment Features Power Supply AC 110~220V (±10%) 50Hz, 2.0kW
Outline Dimensions 1450(W)×1500(D)×1850(H)mm
System Weight 1900 kg
Optional Accessories None
Warranty One year warranty , free replacement the parts due to original manufacturer’s defect, but expect of man-made damages and force majeure



X-Ray Safety: All X-ray machines manufactured by Unicomp Technology meet the FDA-CDRH Regulation CFR 21 1020.40 Subchapter J for cabinet x-ray systems. The FDA – CDRH standard for cabinet x-ray systems states that radiation emission will not exceed. 5millirem a /hr.2″from any external surface. Our machines (Leakage <1μSv/h) are typically 5-10 times less than the international standards,
