Inline Automatic X Ray Inspection Machine for 18650 Battery LX-1Y60-110/ Máy x ray Unicomp kiểm tra pin tròn

Liên hệ

Mô tả

Product Details:

Place of Origin: China
Brand Name: Unicomp
Certification: ISO9001,ISO14004,OHSAS18001,
Model Number: LX-1Y60-110
Detailed Product Description
Dimension(L×W×H): 3300mmX1500mmX2000mm Weight: 2.5t
Power: 4KW Max.Voltage: 110kv
Resolution: 110 Lp/cm Focal Spot Size: 5um

Inline Automatic X Ray Inspection Machine for 18650 Battery LX-1Y60-110


1, Fully automated operations, reduce manpower, reduce production costs, improve production efficiency and quality consistency;

2, Software automatically determine, improve product consistency and quality assurance;

3, Comes with SPC software analysis, easy process control and quality data analysis;

4, The design fully consider the safety factors to ensure the safety of personal protection;

5, Beautiful appearance , generous, enhance the corporate reputation.

Aftersales service:

Ø A professional service team

Ø Country-wide network

Ø 24/7 hotline

Ø Onsite installation, debugging and training services

Ø Scheduled call & visits

Ø Life-long free software upgrading



Prodcution Capacity


Ø Wuxi Factory: 6000M2

Ø Shenzhen Factory: 9000M2

Ø Chongqing Factory:8500M2

Ø Current Capacity: 300 Sets /Month

Ø Expansion Capacity: 1000 Sets/Month



Company Introduction:


15 years focused on X-ray technology R & D and equipment mfg.


A national Hi-tech enterprise with international vision


3 modern R & D and manufacturing factories, 2 software companies


240 patents & 30 software copyright


300 professional R & D engineers, sales and service staff


Company certified by ISO9001, ISO14001 and OHSAS18001 system


Products complied with CE, FDA and passed Chinese MPS testing


Provincial Engineering Technology Research Center


Provincial science and technology award


Monthly production capacity up to 500 sets



System Parameters Dimension(L×W×H) 3300mmX1500mmX2000mm
Weight 2.5t
Working Environment 0~40℃
Power 4KW
Accuracy ±60μm
Operating Mode In-line
X-ray Tube Type Closed
Max.Voltage 110kv
Max.Current 0.45mA
Focal Spot Size 15um
Quantity 1/2
Image Detector Type Image Intensifier
Resolution 110 Lp/cm
Size 4”
Quantity 1/2
Applied to 18650 Cylindrical Battery
Max.Capacity 60ppm/130ppm
Operation Ratio ≥95%
Applicable Size 18650 Cylindrical Battery

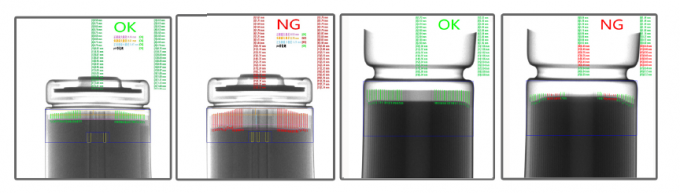

Items Alignment Metric
Customer Cases Panasonic /DLG/Liaoning BICO
Equipment Features *Applicable to the detection of cylindrical batteries like 18,26 series ;

*High speed, high stability ;

*Modular design with high expansibility, customized automatic battery loading and unloading

*Automatic docking with production lines, unattended operation;

*Unicomp-owned R&D of in-line lithium battery inspection software system
